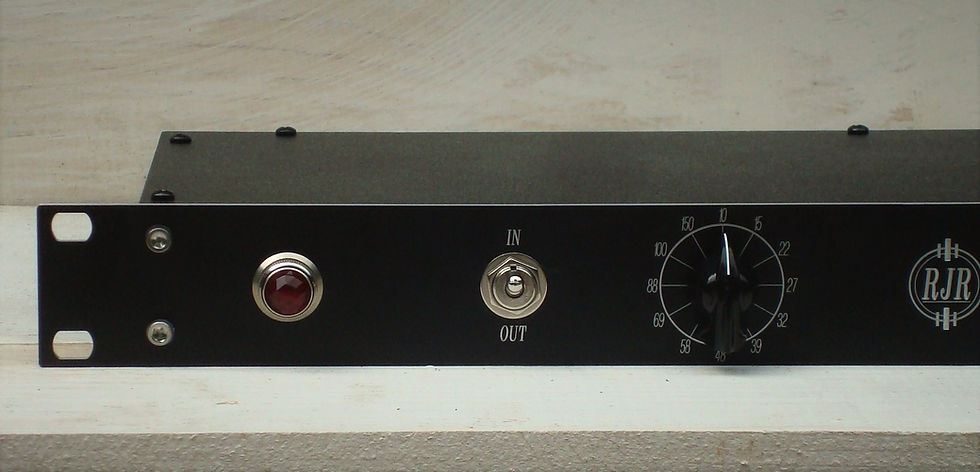

RJR CUT -6dB/octave sub cut filter
The RJR CUT is built to order. Please allow a 6-8 week lead time for delivery.
The RJR CUT is a stereo -6dB/octave sub-cut filter. The minimalist audio path contains high speed opamps, metal film resistors, WIMA film caps, and low esr electrolytics for an extremely clean, transparent sound. The RJR CUT is perfect for mastering, mixing, or any situation where subsonic frequencies need to be tamed.
Each channel has 12 frequency settings and a hard bypass.
The frequency settings are:
10, 15, 22, 27, 32, 39, 48, 58, 69, 88, 100, and 150 Hz.
Noise: less than -90dBu
Input impedance: greater than 20k ohms
Output impedance: less than 50 ohms

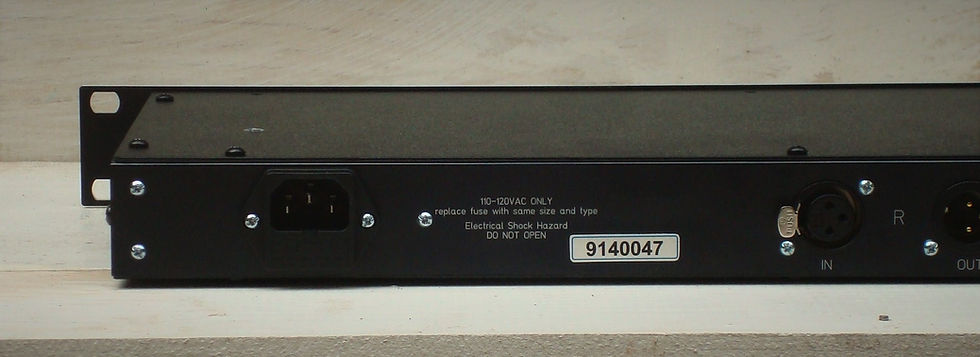

Connections: gold plated Neutrik XLR jacks
Power: 110-120VAC (can be built with 220-240V input. Please specify when ordering.)
Custom versions are available, which allow for the addition of extra channels, different frequency settings, different front panel designs, and different AC mains voltage. For custom orders, please inquire on the contact page.
